30x25x2.5mm Intelligent Household Adult Baby Scale Half Bridge Micro Load Cell 50kg SC918 for Excitation Voltage 5-10VDC

Series : Micro Load Cell

Features : Half Bridge Mini Sensor

Mounting Type : Fixed installation

Description : Can be consulted, SC918

Model Number : SC918

Type : Load Cell

Place of Origin : Guangdong, China

Brand Name : SNC

Use : weight scale weight sensor

Theory : strain gauge load cell

Output : 1mv/v

Model : SC918

Material : Alloy steel

Non-linearity : 0.2%FS

Capacity : 10kg, 20kg, 30kg, 50kg, 75kg

Hysteresis : 0.2%FS

Repeatability : 0.1%FS

Excitation voltage : 5~10VDC

compensated temp : -10~+40C

IP grade : IP65

Application : bathroom scale, kitchen scale

MOQ : 40 pieces

Price : $0.50/pieces 40-3999 pieces

Contact Now

SC902 Small Weight Sensor Miniature Flat 3 Wire Load Cell Sensor 50Kg 200Kg For Personal Body Scale

Product Description

30x25x2.5mm Intelligent Household Adult Baby Scale Half Bridge Micro Load Cell 50kg SC918 for Excitation Voltage 5-10VDC30x25x2.5mm Intelligent Household Adult Baby Scale Half Bridge Micro Load Cell 50kg SC918 for Excitation Voltage 5-10VDC

Parameters

Capacity 50kg
Accuracy 0.2% F·S
Rated output 1.2±0.2mV/V
Non-linearity 0.2% F·S
Hysteresis 0.2% F·S
Repeatability 0.2 % F·S
Creep 0.2% F·S /3min
Zero balance ±0.6mV/V
Input resistance 1000±10Ω
Output resistance 1000±10Ω
Insulation resistance ≥2000MΩ
Excitation voltage 3~10VDC
Operating temp. range -10~+40ºC
Temp effect on zero 0.5% F·S /10ºC
Temp effect on span 0.3% F·S /10ºC
Ultimate overload 150%
Connecting cable Φ0.8x110mm
Unit weight 60g/set
Package 300 sets per carton
Wiring: W: White R: Red B: Black E+: Excitation + S+: Signal + E-: Excitation - S-: Signa

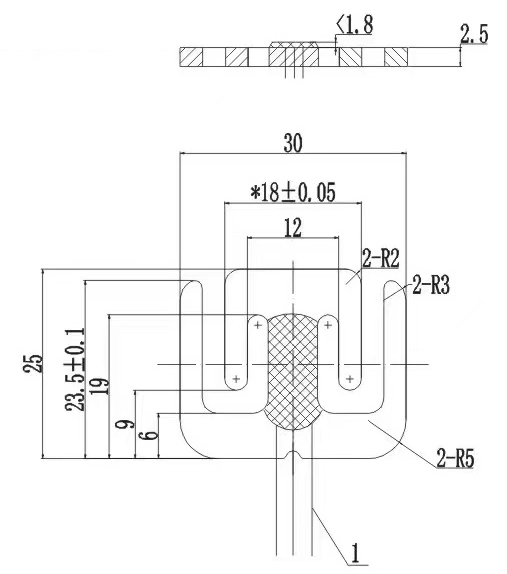

SC918 size : 30 x 25 x 2.5 mm

30x25x2.5mm Intelligent Household Adult Baby Scale Half Bridge Micro Load Cell 50kg SC918 for Excitation Voltage 5-10VDC

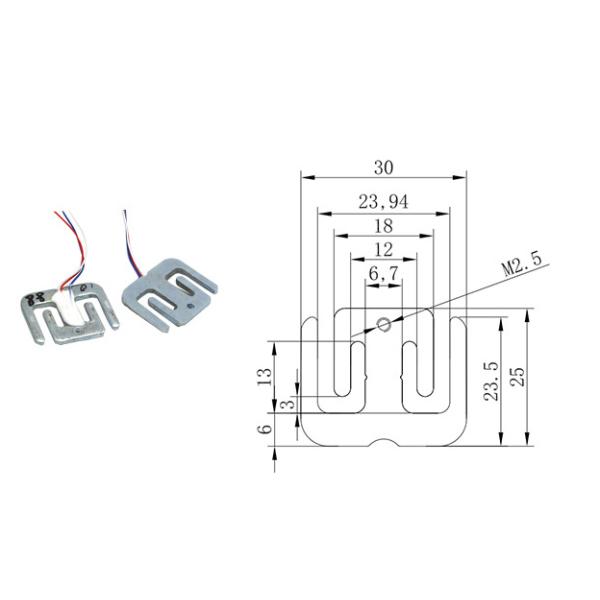

SC918A, with extra hole, size : 30 x 25 x 2.5 mm

30x25x2.5mm Intelligent Household Adult Baby Scale Half Bridge Micro Load Cell 50kg SC918 for Excitation Voltage 5-10VDC

Load cell Accessorie

30x25x2.5mm Intelligent Household Adult Baby Scale Half Bridge Micro Load Cell 50kg SC918 for Excitation Voltage 5-10VDC

30x25x2.5mm Intelligent Household Adult Baby Scale Half Bridge Micro Load Cell 50kg SC918 for Excitation Voltage 5-10VDC
